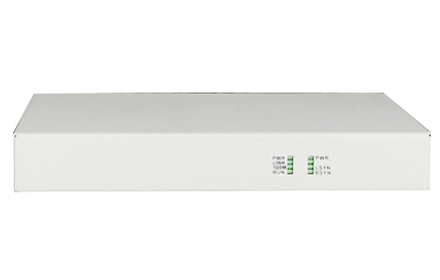

    POE2004 4*FE(802.3at) Fiber Media Converter

    Type:POE2004-at Message

    Description:4 * FE fiber optic transceivers，802.3at POE function，Output power ＞25.5W

    Product Description
                  This series is IEEE802.3 Ethernet media converters can achieve four 10 / 100Base-T twisted pair and 10 / 100Base-FX or 10,100Base-T twisted pair and 10,100Base-FX's two kinds of media media conversion or extension of the network between the transmission distance, mainly for (20/40/60/80/120 km) long distance optical fiber transmission network.
               IEEE802.3at Power over Ethernet ports to provide support through a wireless access point power Category 5 Ethernet cable (AP) or IP phoness and other devices.
    Functional Properties
    Ø automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
    Ø device provides four Ethernet ports, an Ethernet optical interface
    Ø PSE power company for Ti chip, high stability;
    Ø Ethernet port supports standard IEEE802.3at Power
    Ø Power over Ethernet ports for maximum power 25.5W
    Ø support full and half duplex network communication, with auto-negotiation capability;

    Ø VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches

           used to support up to 1916-byte Ethernet packets;

    Ø Support UTP port cross-connect switch selection, easy to install system debugging;
    Ø capable of VLAN classification based PORT, this method does not affect the division of the remote device
    Ø 802.1Q VLAN division, then this, the remote interface can be divided into the same VALN
    Ø devices with Console port supports super terminal control device
    Technical Parameters

     u  Ethernet UTP Interface

        Interface rate:              10/100 M, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Optical Ethernet interface

        Wave Length:          1310nm, 1550nm

        Interface rate:              100 M, half/full duplex

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  FC/SC

        Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

       Transmission distance may also be limited by fiber optic bandwidth.

    u Ethernet POE characteristics
        PoE standard: IEEE 802.3af (port output power 15.4W)
        PoE type: the end of cross connection (optional for mid span)

        PoE port: port output power of 15.4W (IEEE802.3af)
        PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       216X140X31mm( WX DXH))

        Simple packaging : 274X193 X84mm ( WX DXH)

       Piece Weight: 1.8KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

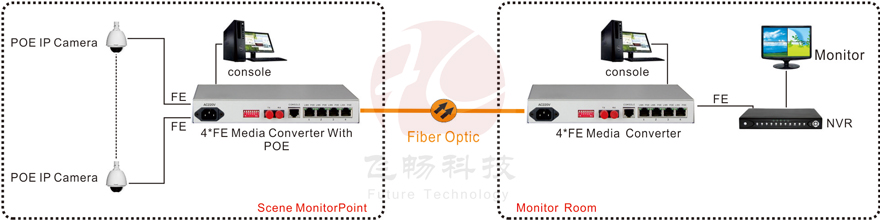

    Application Scheme

    Applications
