    Products center

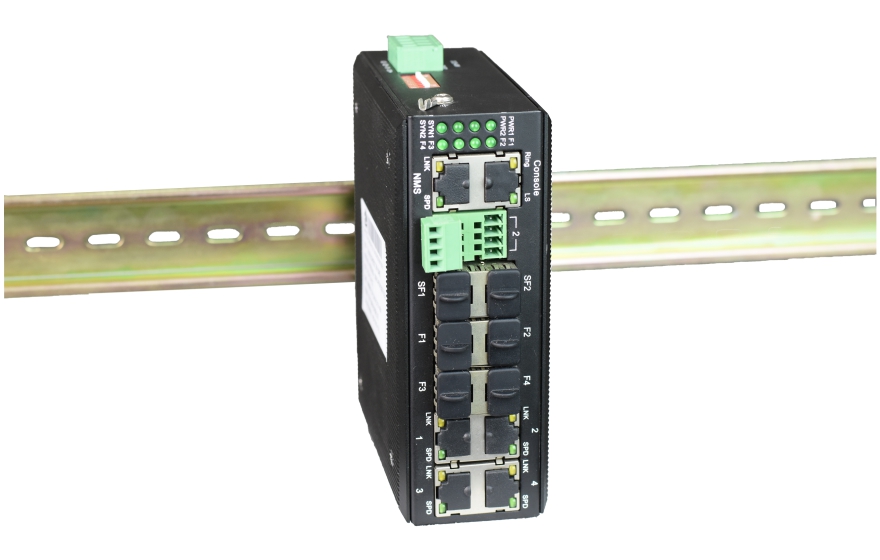

    Managed 4*FE+4*100base-FX+1*1000base-X Ethernet Swi

    Type: Message

    Description:This series of products to provide industrial-grade 4*FE +4*100base-FX to 1*1000base-X conversion mainly for long-distance fiber optic network (20/40/60/80/100 km) transmission. share1000M bandwidth each channel can be set through the Con

    Product Description
        This series of products to provide industrial-grade 4*FE +4*100base-FX to 1*1000base-X conversion mainly for long-distance fiber optic network (20/40/60/80/100 km) transmission. share1000M bandwidth each channel can be set through the Console port (Ethernet interface for the exchange port can support VLAN division) that logic Isolation; 1 console port.
    Functional Properties
    ◆ Industrial Ethernet series designed for harsh and harsh industrial environments;
    ◆ Equipment to provide 4*FE 4*100base-FX 1 Gigabit optical port an optional Console / SNMP network management port;
    ◆ Electrical interface (RJ45 interface) support 10 / 100M adaptive full / half duplex mode MDI / MDI-X automatic detection;
    ◆ Optical interface to support multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode SC / ST / FC / LC interface optional;
    ◆ With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;
    ◆ Transceiver built-in 1MBits high-speed cache to avoid the IP camera in the monitoring screen rapidly changing the environment caused by the transmission screen stuck phenomenon;
    ◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
    ◆ Equipment for the Ethernet switch chip + FPGA program with remote OAM management frame function with 2U card with SNMP network management 1*GE optical transceiver card interconnection SNMP software can manage to the device; can also support the Console (CLI) /WEB/ independent SNMP network management;
    ◆ The network management real-time view and management of the local end and the remote Ethernet interface status and settings; equipment with power-down detection function can detect when the optical signal is lost when the peer device power or fiber unreasonable;
    ◆ Support a wide range of 9-55V AC and DC power input;
    ◆ Support internal isolation redundant dual power input;
    ◆ Power supply support overload protection anti-reverse protection;
    ◆ Meet the requirements of industrial four electromagnetic compatibility;
    ◆ Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc .;
    ◆ No fan efficient cooling reduce repair time;
    ◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

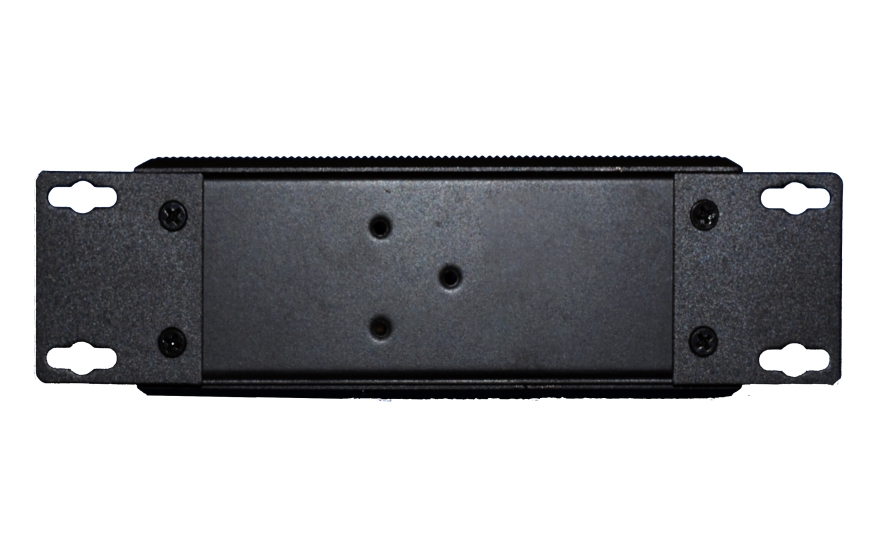

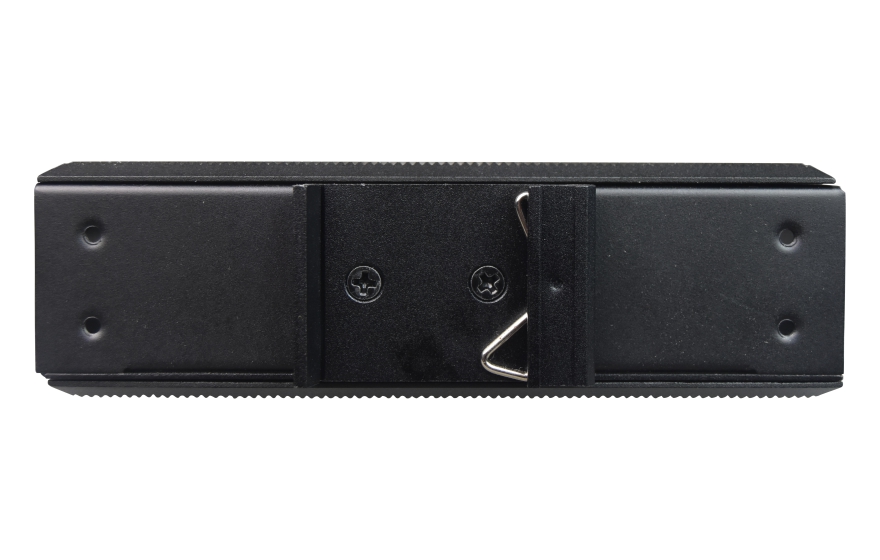

    ◆ Rail or wall mounted;
    ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
    ◆ All models are tested by 100% roasting machine the warranty period: 5 years;
    Technical Parameters
    ◆  E1 Interface
        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;
        E1 Impedance:             75Ω (unbalance) 120Ω (balance);
        Jitter tolerance:            In accord with protocol G.742 and G.823
        Allowed Attenuation:   0~6dBm
    ◆  Ethernet interface (10/100M)
        Interface rate:              10/100 Mbps half/full duplex auto-negotiation
        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
        MAC Address Capability: 4096
        Connector:                  RJ45 support Auto-MDIX
    ◆  Power
        Power supply: AC180V ~ 260V；DC –48V；DC +24V
        Power consumption: ≤10W
    ◆  Dimension
        Product Size: Mini Type    216X140X31mm(WXDXH)
                Simple packaging:   274X193X84mm(WXDXH)
                Piece Weight :    1.25KG
    ◆  Working environment
        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)
        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)
