    Products center

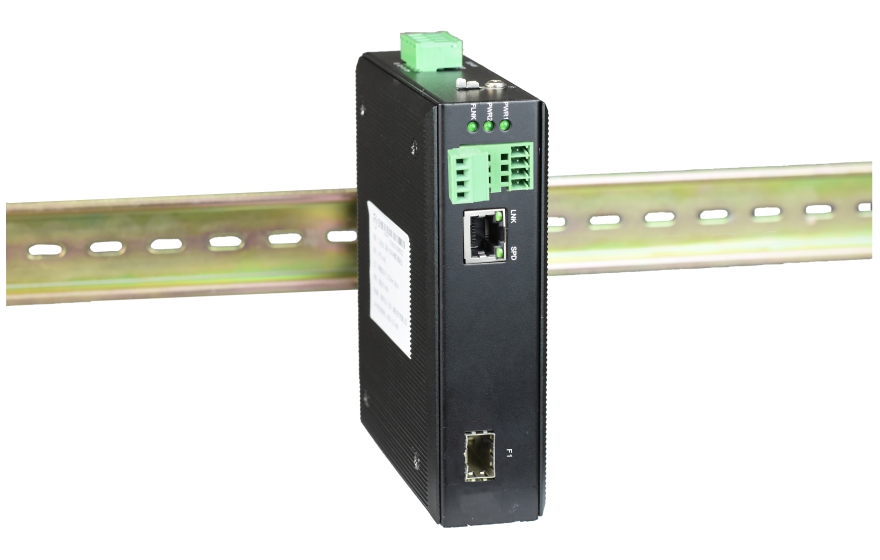

    Managed Industrial 1*GE+1*Serial Switch

    Type:FCMG-G1R1N Message

    Description:This series of products is the Ethernet IEEE802.3 media converter to achieve a Optical Ethernet to 1*GE+1 RS232/422/485 serial port support (20/40/60/80/100 km )transmission. The device is based on the Ethernet switch chip + FPGA program

    Product Description
        This series of products is the Ethernet IEEE802.3 media converter to achieve a Optical Ethernet to 1*GE+1 RS232/422/485 serial port support (20/40/60/80/100 km )transmission.

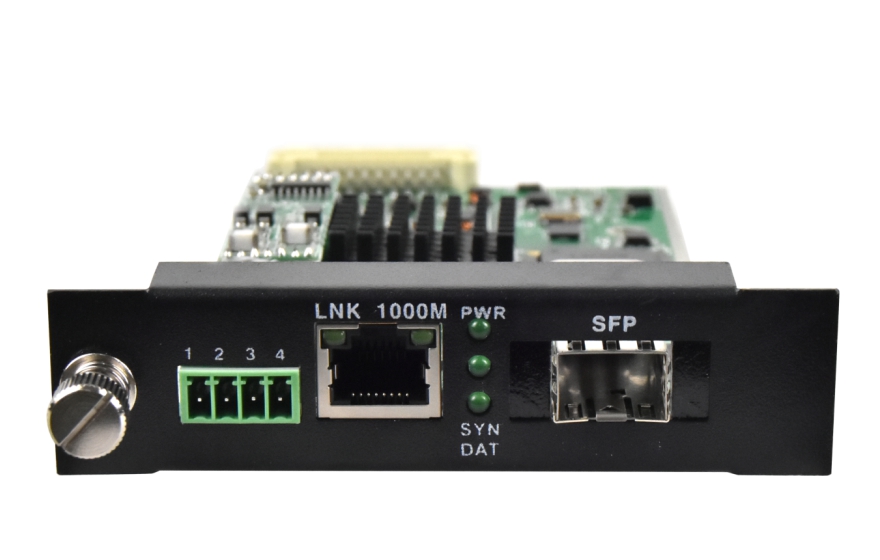

        The device is based on the Ethernet switch chip + FPGA program with powerful local and remote management functions 2U card can be configured SNMP network management card management with perfect alarm function the machine is stable and reliable low power consumption integration High small size.
    Functional Properties
    ◆ Industrial rail design designed for harsh and harsh industrial environments;
    ◆ Equipment to provide 1 Gigabit Ethernet 1*RS232/422/485 serial interface 1 Gigabit Optical Ethernet interface the total transmission bandwidth for the wire speed 1000M;
    ◆ Electrical port 10/100 / 1000Mbps adaptive electrical port MDI / MDI-X adaptive without manual adjustment;
    ◆ Switch built-in 1Mbit MP-SSRAM high-speed memory non-blocking design the largest backplane bandwidth 16GBit / S;
    ◆ based on FPGA + ARM design with a strong local and remote management functions can be connected with the 2U card device you can configure the SNMP network management card management;
    ◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
    ◆ With broadcast storm protection balance flow isolation conflict and detection errors and other functions;
    ◆ Ethernet interface with serial data with lightning protection lightning protection to GB / T17626.5 (IEC61000-4-5) short circuit current wave 10/700μs open peak output voltage 6KV standard;
    ◆ Provide 1*RS232/485/422 interface optional serial channel can be transmitted from 0-115200 baud rate;
    ◆ The network management real-time view and management of the local end and the remote Ethernet interface status and settings; equipment with power-down detection function can detect when the optical signal is lost when the peer device power or fiber unreasonable;
    ◆ Support a wide range of 9-55V AC and DC power input;
    ◆ Support internal isolation redundant dual power input;
    ◆ Power supply support overload protection anti-reverse protection;
    ◆ Meet the requirements of industrial four electromagnetic compatibility;
    ◆ Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc .;
    ◆ No fan efficient cooling reduce repair time;
    ◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

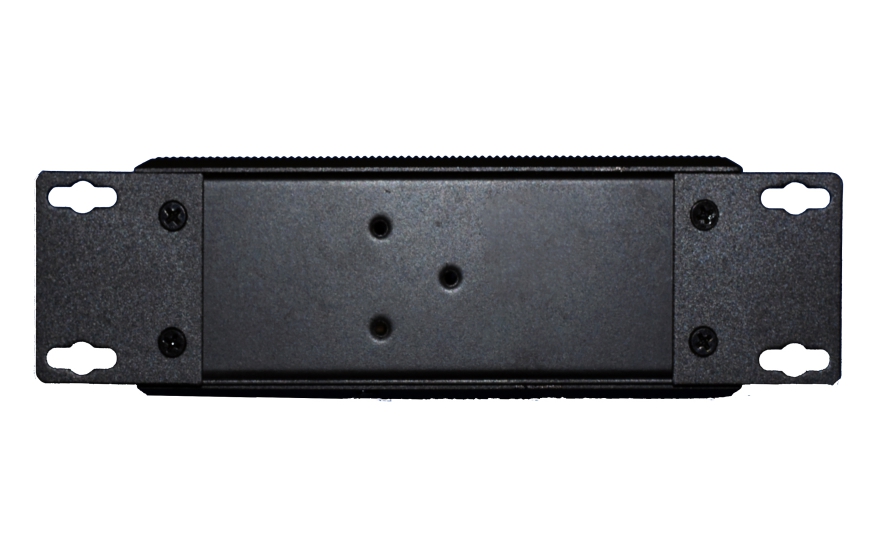

    ◆ Rail or wall mounted;
    ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
    ◆ All models are tested by 100% roasting machine the warranty period: 5 years;
    Technical Parameters
    ◆  E1 Interface
        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;
        E1 Impedance:             75Ω (unbalance) 120Ω (balance);
        Jitter tolerance:            In accord with protocol G.742 and G.823
        Allowed Attenuation:   0~6dBm
    ◆  Ethernet interface (10/100M)
        Interface rate:              10/100 Mbps half/full duplex auto-negotiation
        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
        MAC Address Capability: 4096
        Connector:                  RJ45 support Auto-MDIX
    ◆  Power
        Power supply: AC180V ~ 260V；DC –48V；DC +24V
        Power consumption: ≤10W
    ◆  Dimension
        Product Size: Mini Type    216X140X31mm(WXDXH)
                Simple packaging:   274X193X84mm(WXDXH)
                Piece Weight :    1.25KG
    ◆  Working environment
        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)
        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

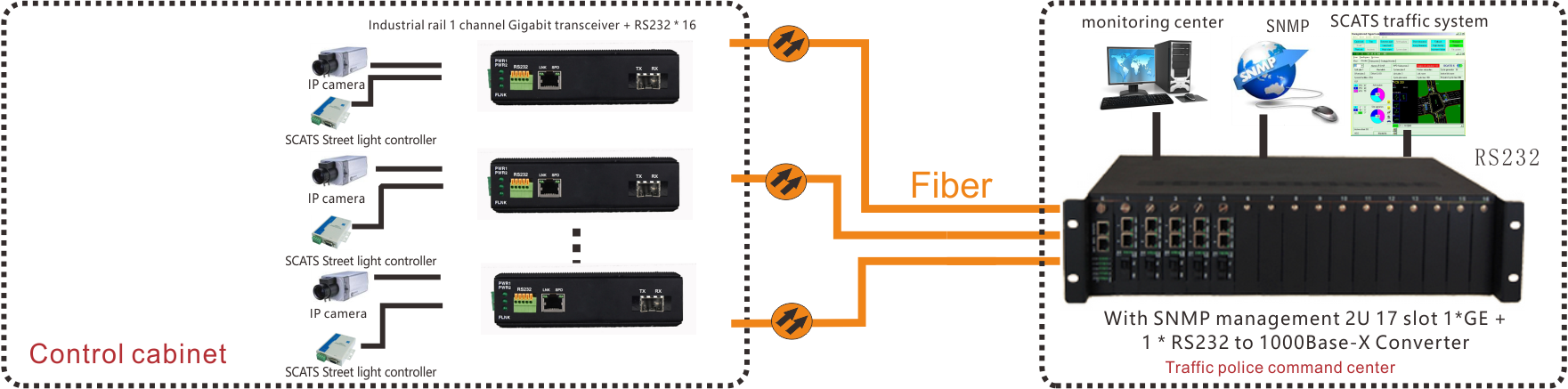

    Application Scheme
