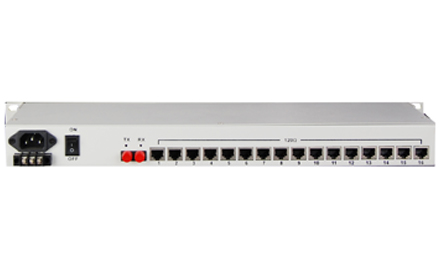

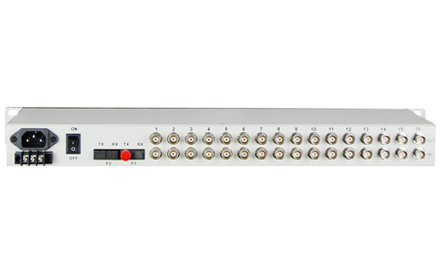

    16E1+4GE PDH Multiplexer

    Type:FCP-E16G4 Message

    Description:16E1+4GE PDH，order wire phones，19\'\'inch 1U，（Standard telephones interface, non-telephones handles）Console，1+1 Back up Optic fiber

    Product Description

                 This device is the point-to-point optical transmission device developed on the basis of VLSI. The device  provides 1-16Channel E1 interface, 1-4Channel 10M/100M/1000M Ethernet interface (Line Rate 1000M) and 2 expansion interfaces. 4Channel Ethernet interface is switch interface, can support VLAN. 1 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M).1Channel digital business phones can be optional.It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.


    Functional Properties

    Ø Based on self -copyright  IC

    Ø The bandwidth is up to 1.5G, can save line sources

    Ø Ethernet interface rate is 10M/100M/1000M, half/full duplex auto- adaptable

    Ø 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical  isolation

    Ø E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology

    Ø 1Channel PCM digital business phones (optional)

    Ø Provide Console management interface

    Ø When optical lose signal, it can detect the remote device is power off or fiber is disconnected,  and indicates   alarm by LED

    Ø The local device can view the remote device working condition

    Ø Provide 2 expansion interface, you can extend 1~2Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;

         1~2Channel voice, 1~2Channel E1，1~4Channel switch , or Provide command the remote interface Loop Back, ease line maintenance

    Ø The transmission distance is up to 2-120Km without interruption

    Ø AC 220V, DC-48V, DC24V can be optional

    Ø DC-48V/DC24V power supply polarity detection function, Polarity-Free


    Technical Parameters
     u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance), 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    u Gigabit Ethernet Interface (10/100/1000M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

       Connector:                  RJ45, support Auto-MDIX

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

       Product size:   19 inch 1U   485 X138 X45 mm(WXDXH)

       Simple packaging: 522X198X82mm( WXDXH)

       Piece weight:  3KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

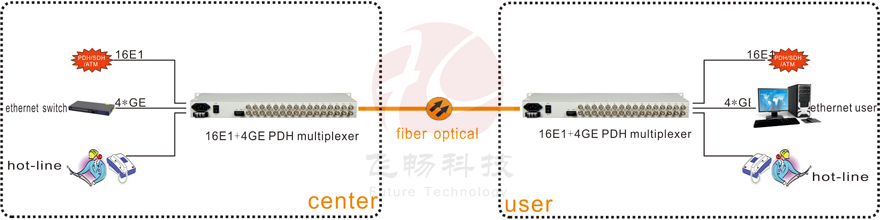

    Application Scheme
