    64E1+4GE PDH Fiber Multiplexer

    Type: Message

    Description:This device is the point-to-point optical transmission device developed on the basis of VLSI. The device provides 1-64*E1 interface, 1-4*10/100/1000M Ethernet interface (Wire Speed 1000M) and 2 expansion interfaces. 4*Ethernet interface is

    Product Description
      This device is the point-to-point optical transmission device developed on the basis of VLSI. The device  provides 1-64*E1 interface, 1-4*10/100/1000M Ethernet interface (Wire Speed 1000M) and 2 expansion interfaces. 4* Ethernet interface is switch interface, can support VLAN. 1 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, dry contact signal, 1Channel digital business phones can be optional. It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.
    Functional Properties
    ◆ Based on self -copyright  IC
    ◆ The Fiber bandwidth is up to 1.5G, Ethernet bandwidth is Wire Speed 1000M
    ◆ Ethernet interface rate is 10/100/1000M, half/full duplex Auto-Nego
    ◆ 4*Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation
    ◆ Provide Console manage interface (RS232)
    ◆ Provide two fiber interface(SFP module), 1+1 protect（APS）function
    ◆ E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
    ◆ Uses standard 2 wire telephones (non-telephones handles) set as engineering order-wire hotline(optional)
    ◆ When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED
    ◆ The local device can view the remote device working condition
    ◆ Provide 2 expansion interface, you can extend 1~2Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;
    ◆ Provide command the remote interface Loop Back, support local E1 Loop Back function, support E1 LOS and AIS alarm ,ease line maintenance
    ◆ The transmission distance is up to 2-100Km without interruption
    ◆ Support SNMP manager (SNMP agent inside)
    ◆ AC 220V, DC-48V, DC24V can be optional
    ◆ DC-48V/DC24V power supply polarity detection function, Polarity-Free
    Technical Parameters
    ◆  Multi-mode Fiber
    50/125um, 62.5/125um,
    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)
    Wave Length: 820nm
    Transmitting power: -12dBm (Min) ~-9dBm (Max)
    Receiver sensitivity: -28dBm (Min)
    Link budget: 16dBm
    Single-mode Fiber
    8/125um, 9/125um
    Maximum transmission distance: 40Km
    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
    Wave Length: 1310nm
    Transmitting power: -9dBm (Min) ~-8dBm (Max)
    Receiver sensitivity: -27dBm (Min)
    Link budget: 18dBm
    ◆  E1 Interface
      Interface Standard: comply with protocol G.703;
     Interface Rate: 2048Kbps±50ppm;
     Interface Code: HDB3;
     E1 Impedance: 75Ω (unbalance), 120Ω (balance);
     Interface: RJ45,2*E1/RJ45
     Jitter tolerance: In accord with protocol G.742 and G.823
     Allowed Attenuation: 0~6dBm
    ◆  Gigabit Ethernet Interface (10/100/1000M)
      Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
     Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
     MAC Address Capability:4096
     Connector: RJ45, support Auto-MDIX
    ◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity: 5%~95 % (no condensation)
    Storage temperature: -40°C ~ 80°C
    Storage Humidity: 5%~95 % (no condensation)

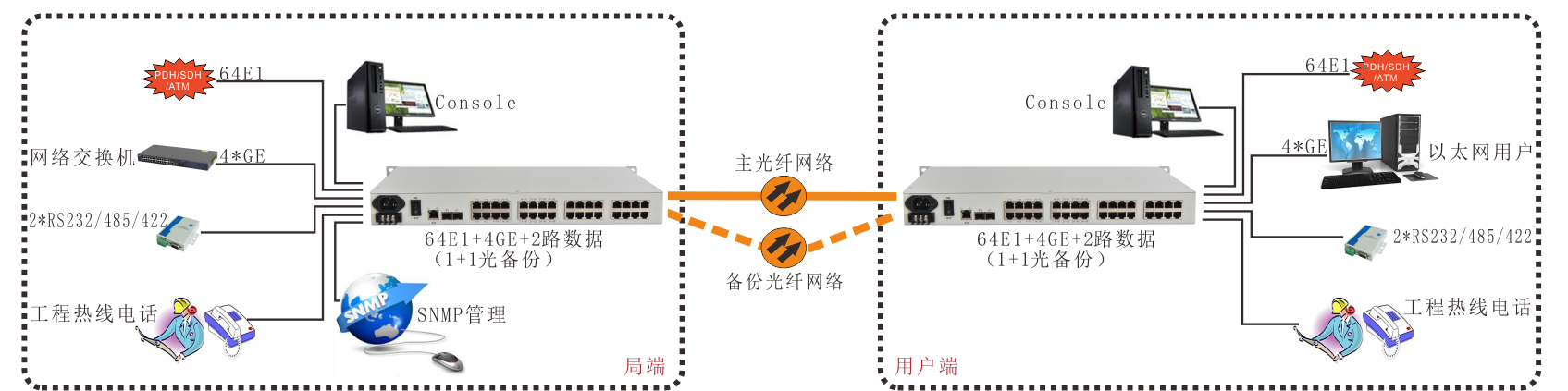

    Application Scheme
