    Products center

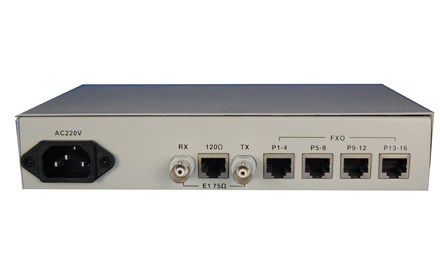

    E1-16*POTS Fiber Mux(Desktop Tpye)

    Type:FCC-E1O16/FCC-E1S16 Message

    Description:E1-16 * telephonesDesktop Tpye Support 4U rackmount SNMP

    Product Description
                  This device is a desktop there 4U rack card type which provides telephones outputs 1-16 Equipment electrical part for the whole digital circuits machine reliability stability low power consumption high integration small size easy installation and maintenance. Many customers are telecommunications operators E1 leased lines used in computer networking this equipment can be rented at the E1 line opened a few road phones you can make free calls between headquarters and branch offices of this.
    Functional Properties

    ◆   based on proprietary integrated circuits;

    ◆   alarm status can be monitored on the end;

    ◆   E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;

    ◆   support FXO port and  FXS ports wire 2  audio interface FXO port and PBX docking port and

          the user is connected to FXS telephones;

    ◆   16 * voice access support caller ID function and reverse polarity billing functions;

    ◆   Support Telephones Number mutual function of each site;

    ◆   E1 signal can be detected as a barrier to the end device is lost or shut E1;

    ◆   provide two kinds of clock ways: E1 master clock E1 line clock;

    ◆   multiple power mode options: AC220V DC-48V / DC24V etc;

    Technical Parameters

    ◆  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance) 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    ◆  FXS phones Interface

        Ring voltage: 75V

        Ring frequency: 25HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    ◆  FXO Switch Interface

        Ring detect voltage: 35V

        Ring detection frequency: 17HZ-60HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    ◆   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    ◆   Dimension

        Product Size:    Mini Type    216X140X42mm(WXDXH)

        Simple packaging:  mini   274X193X84mm(WXDXH)

        Piece Weight :    mini 1KG / 19inch  2.4KG

     ◆  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

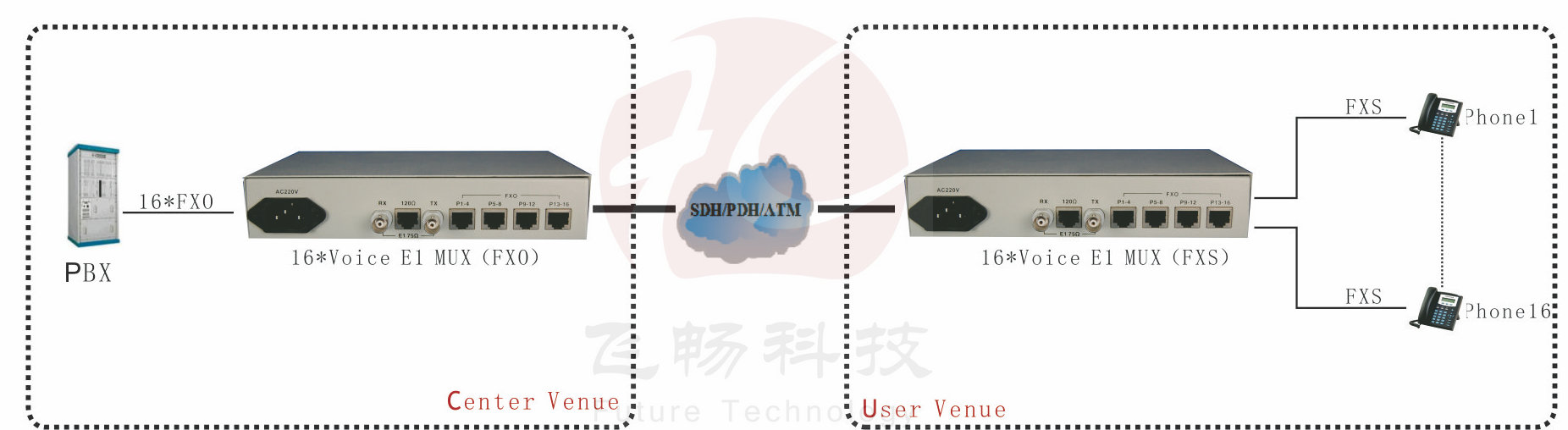

    Application Scheme

    Applications:

    tle="POTS Fiber Mux" alt="POTS Fiber Mux" />
