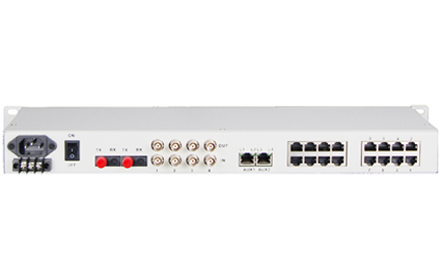

    Fiber-16Voice + 4E1 + 4FE + 4RS232 Multiplexer

    Type:FCP-O16E4F4R4C1/FCP-S16E4F4R4C1 Message

    Description:16 * telephones,4E1,4*100 Mbps Ethernet,Console or SNMP,Support 6U rackmount

    Product Description
                 This device provides 16Channel telephones 1-4Channel E1 interface, 4Channel 10M/100M Ethernet interface (Line Speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible.
    Functional Properties

    Ø Based on self -copyright IC

    Ø E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology Voice port supports FXO and FXS port,

    Ø Voice port supports FXO port and FXS ports, EM2 / 4 audio interface, magneto telephones interface;

          FXO port and docking PBX connected to FXS port and the user's phones;

    Ø Voice FXO/FXS access, supports caller ID feature and reverse polarity billing functions
    Ø Support various sites mutual number allocations function
    Ø Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;

         1~4Channel voice, 1~8Channel switch or two/four line audio and so on
    Ø Ethernet interface supports10M/100M, half/full duplex auto- adaptable, support VLAN

    Ø 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation

    Ø Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable)
    Ø The transmission distance is up to 2-120Km without interruption
    Ø AC 220V, DC-48V, DC24V can be optional


    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance), 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u  FXS phones Interface

        Ring voltage: 75V

        Ring frequency: 25HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  FXO Switch Interface

        Ring detect voltage: 35V

        Ring detection frequency: 17HZ-60HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  EM 2/4 Line

        AD: 0dB

        DA: -3.5dB

        Two/Four-line Impedance: 600 Ohm

        Return loss: 20 dB

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size:         485X200X45mm(WXDXH) 19 1U

        Simple packaging:   522X198X82mm(WXDXH)

        Piece Weight :  2.4KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)






    Application Scheme

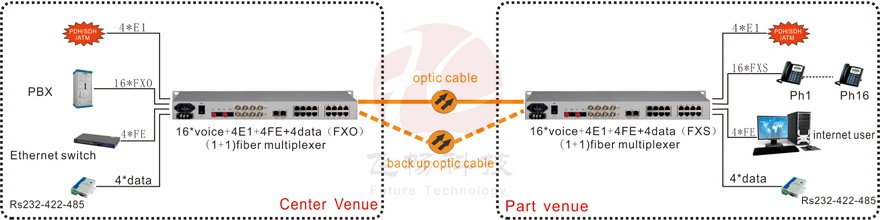

    Applications  1

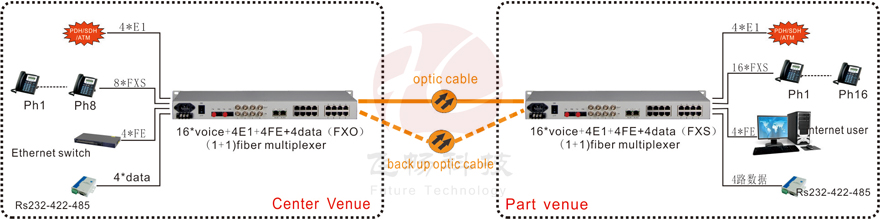

    Applications  2
