    Products center

    RS232 Fiber Modem(Mini)

    Type:FCP-R1m Message

    Description:RS232 Fiber Modem , Serial port communication rate up 921.6KBPS

    Product Description
                    This device is based on FPGA which supports asynchronous RS-232 communication interface Fiber Modem. The device is the best choice of connecting to the remote terminal unit (RTU) to a host (HOST) or a distributed data acquisition system (SCADA) controllers with very high performance price ratio. Using ordinary multi-mode fiber effective communication distance is up to 4KM while using ordinary single-mode fiber effective communication distance up to more than 40KM. Serial port communication rate is up to 921.6KBPS. As a result of the fiber as a transmission medium you can completely avoid the threat to communication device under the adverse environment such as lightning surges and electromagnetic interference at the same time it saves investments of the original lightning surge protection devices that using copper .

    Functional Properties

    ◆  based on self -copyright IC
    ◆  Have the ability to automatically detect the baud rate of serial port signal

    ◆  Automatically test the reason of the device matt is that the device is power off or E1 line is broken.

          And then  indicate on the LED

    ◆  Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV

          Impedance (2 Ohm) CM(Common Mode): 6KV Impedance (2 Ohm) standard

    ◆  Support SNMP Network Management
    ◆  Serial channel can transmit adaptable serial data asynchronously 300-921.6Kbps baud rate
    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um 62.5/125um

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u   Serial interface

        Standard

        EIA/TIA-232 RS-232 (ITU-T V.28)

        Serial Interface

        RS-232: RXD TXD Signal Ground

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size:         95X94X31mm(WXDXH)

        Piece Weight :      0.25KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

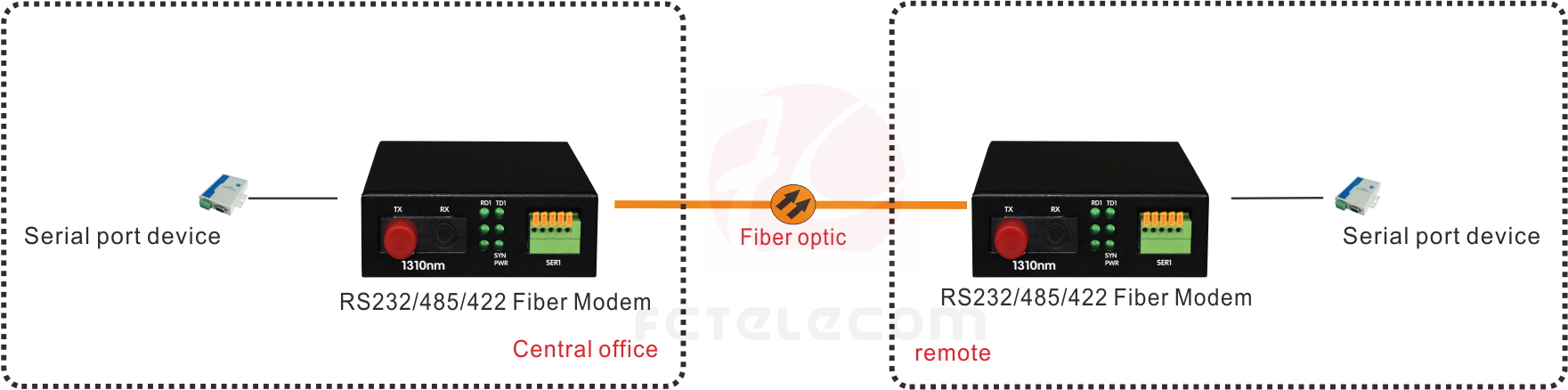

    Application Scheme

    Applications
