    Products center

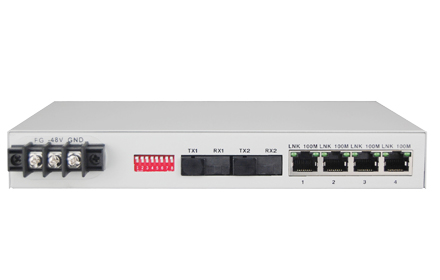

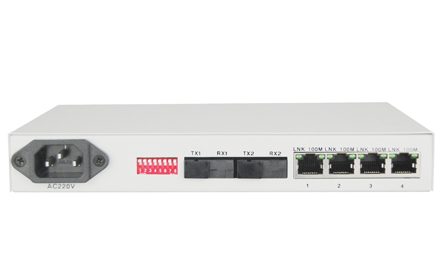

    1+1 4FE Fiber Media Converter

    Type:FC2M-F4b Message

    Description:4*100 Base TX ports ，2*1+1 Backup Optic fiber,main optical fiber broken ，switch to the backup fiber

    Product Description
                 The device provides 1-4Channel 10M/100M Ethernet interface, master fiber interface and backup interface. 4Channel Ethernet interface is switch interface, can support VLAN.
    Functional Properties

    Ø Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

    Ø Device provides the main fiber interface with backup optical interfaces, dual fiber port backup function  ensures

          that the business will never break;

    Ø Device provides 4 Ethernet UTP, 2 Ethernet optical port

    Ø   Support full-duplex and half duplex network communication, with auto-negotiation capability;

    Ø   The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied  with IEEE802.10 protocol

    Ø   4*100 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of  4 group

           network business independently.

    Ø   Division of VLAN base PORT, this method does not affect the remote device

    Ø   802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN

    Ø   Device provides Console port, supports Terminal control device

    Ø   Ethernet port priority setting

    Technical Parameters

     u  Ethernet UTP Interface

        Interface rate:              10/100 M, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Optical Ethernet interface

        Wave Length:          1310nm, 1550nm

        Interface rate:              100 M, half/full duplex

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  FC/SC

        Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

       Transmission distance may also be limited by fiber optic bandwidth.

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       216X140X31mm( WX DXH))

        Simple packaging : 274X193 X84mm ( WX DXH)

       Piece Weight: 1.8KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

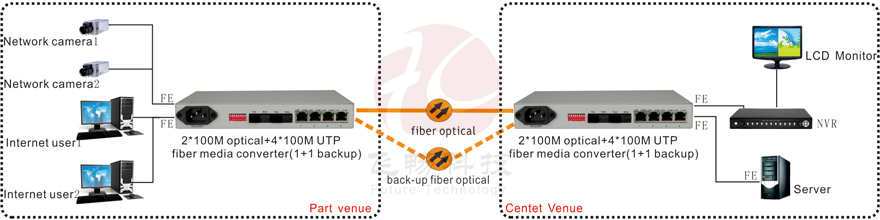

    Application Scheme

    Applications
